Grove at Gleannloch Farms
Houston, Texas
Click image(s) to view fullsize

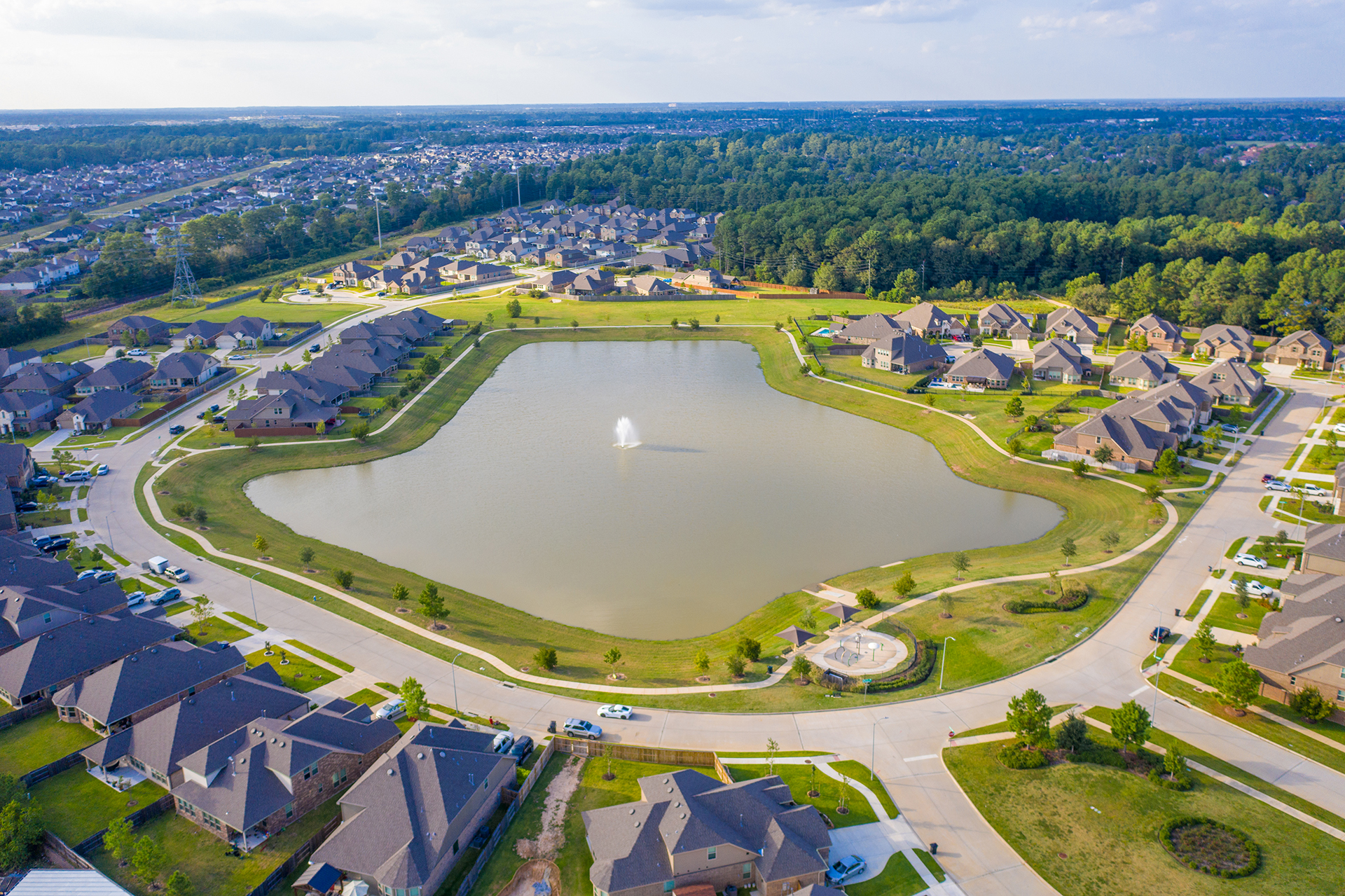

Grove at Gleannloch Farms is a single-family subdivision located within HCMUD 383 in the Gleannloch Farms community. The development consists of two sections comprising 150 lots on 60 acres situated east of Hwy 249 along Spring-Cypress Road, providing an 8.5-acre amenity lake and a splash pad playground.
Costello provided civil site design services for water, sewer, and drainage, detention design and paving, surveying, pipeline coordination, and construction phase services.
Relevant Project Services
- Residential site design
- Drainage
- Surveying
- Construction phase services
- Utility coordination
Project Size and Cost
- 60 acres
- Estimated construction cost $4.2M
Unique Project Attributes
- Surrounded by an existing development, a school, and a railroad that required special attention to the mass grading and fill elevations so as not to disturb the existing development.
Challenges Faced
- Storm sewer under Spring-Cypress Road encountered an unknown data cable (not found by 411). The contractor was able to adjust the depth of the cable to make the storm sewer connection.
- Due to depth constraints on the site, drainage required a parallel storm pipe system under Spring-Cypress Rd.
- Fill elevations against an existing business required a retaining wall.
Resolutions & Results
- The contractor had to open-cut Spring-Cypress Rd. to provide enough room to lower the data cable to allow the storm sewer to cross the street.
